Patch settings: FX loop, expression & footswitches

Everything that belongs to this patch but isn't a pedal lives in two deck drawers: FX LOOP, and SETTINGS , which is tabbed into Expression, Footswitches and Bulk Apply. On a phone they are the FX Loop and Patch Settings sheets on the DEVICE tab.

FX Loop

Drag the ↗ SEND and ↘ RETURN arrows between blocks to place your external effects loop anywhere in the chain. Setting Send equal to Return bypasses the loop. Arrow keys work too.

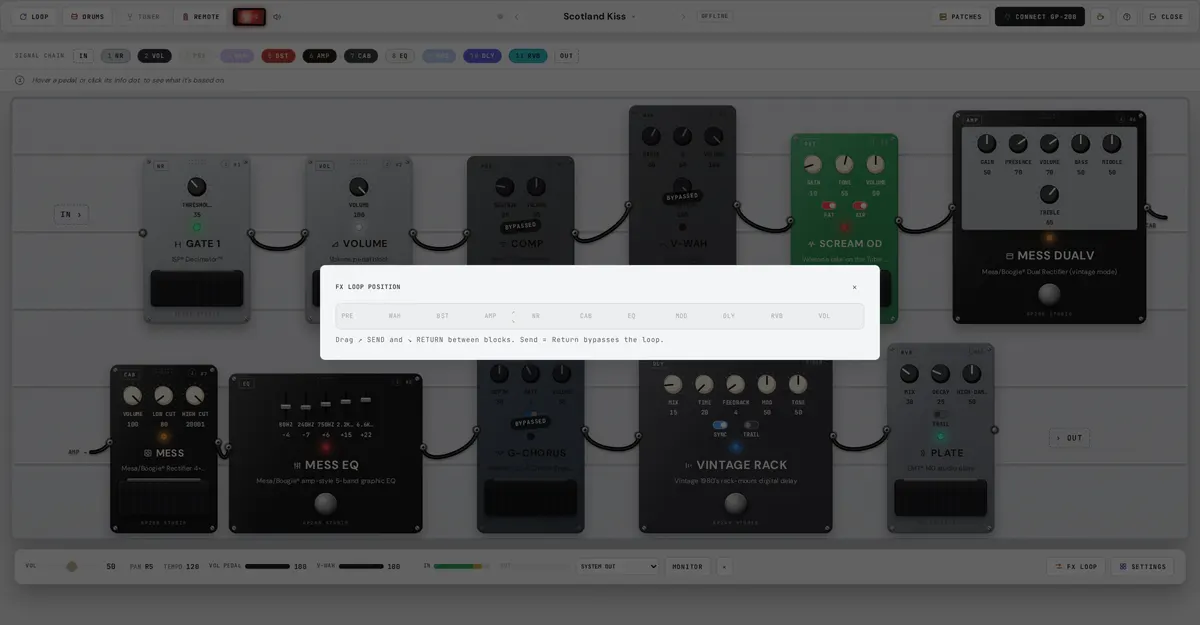

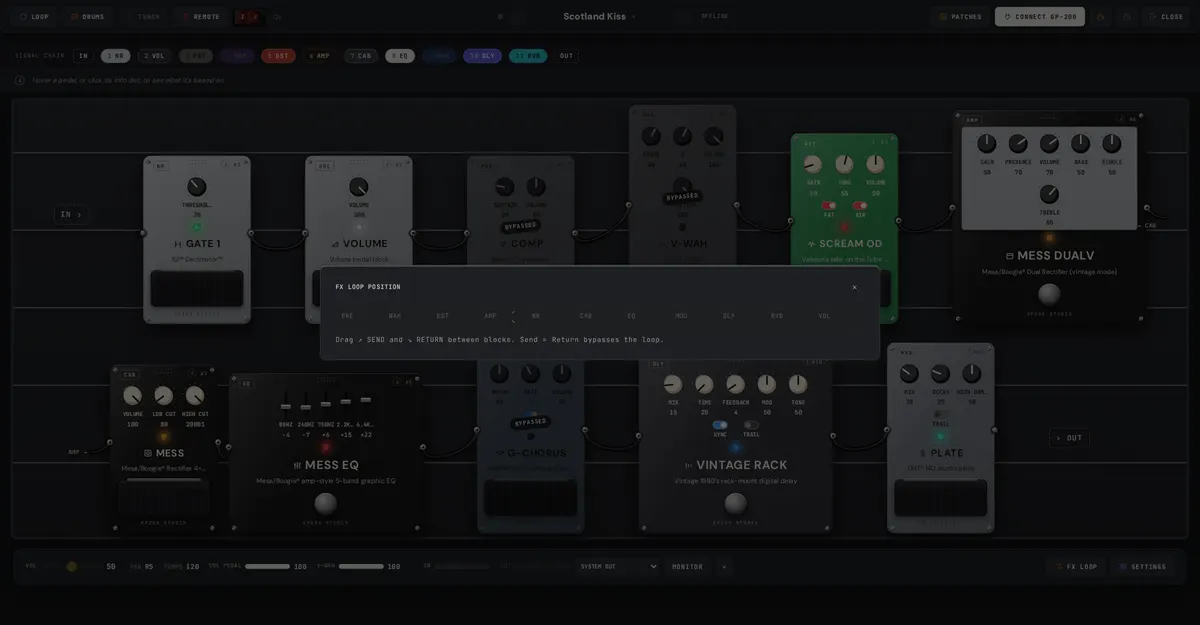

FX LOOP drawer: drag SEND and RETURN to route the external loop.

Expression pedals

Assign the expression pedals across three pages (EXP1 Mode A, EXP1 Mode B, EXP2), each with three assignment slots. For each slot, pick a pedal, pick one of its knobs, then set the Heel (pedal up) and Toe (pedal down) sweep values.

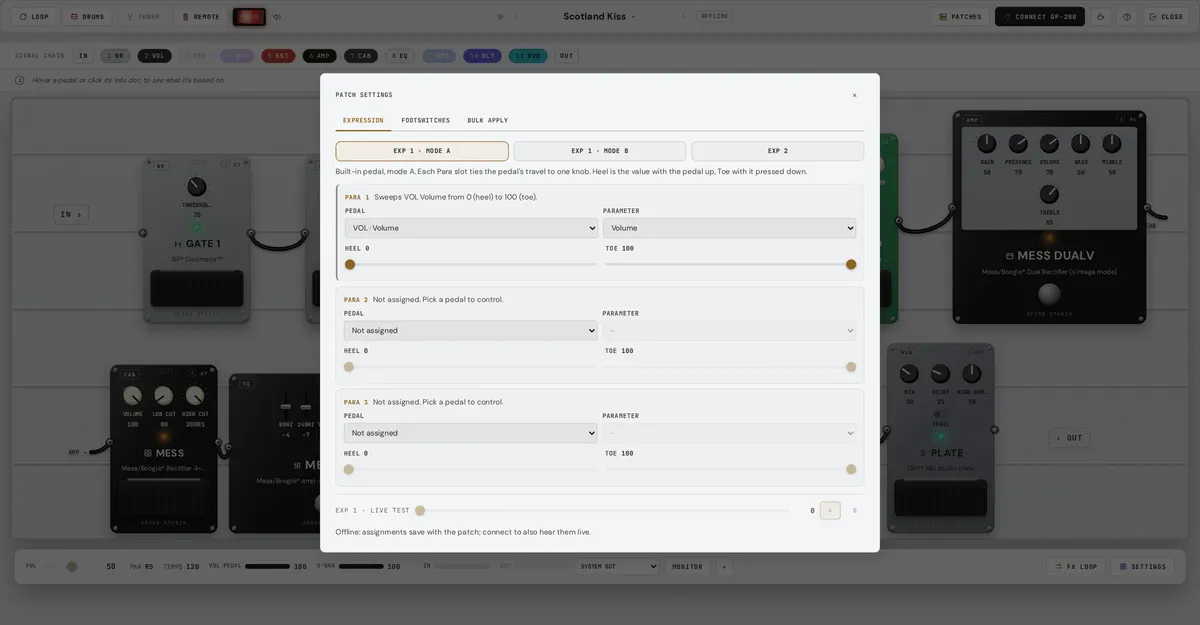

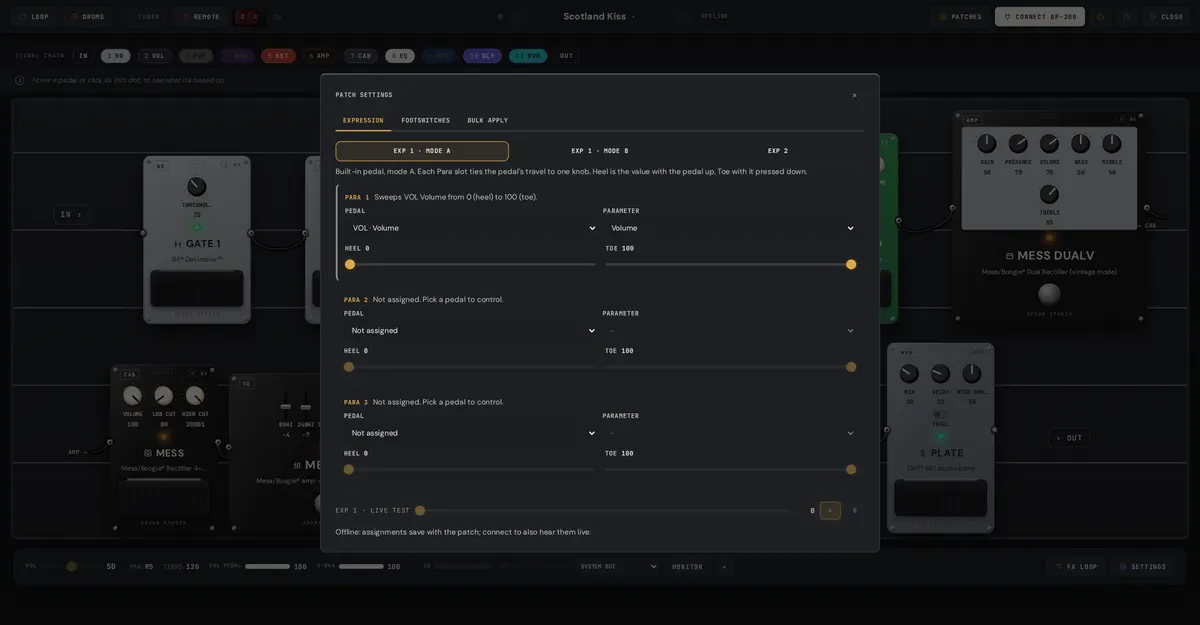

The expression pedal assignment drawer — EXP drawer: map an expression pedal to a knob with Heel/Toe sweep values.

EXP drawer: map an expression pedal to a knob with Heel/Toe sweep values.

Footswitches (CTRL 1–8)

Assign the eight CTRL footswitches. Pick a footswitch, then tap the effect blocks it should toggle; one switch can stomp several pedals at once. Colored dots show what each switch controls; Clear resets a switch. With a device connected the assignment is written live, and it is stored with the patch, so it survives an export and a save to the unit.

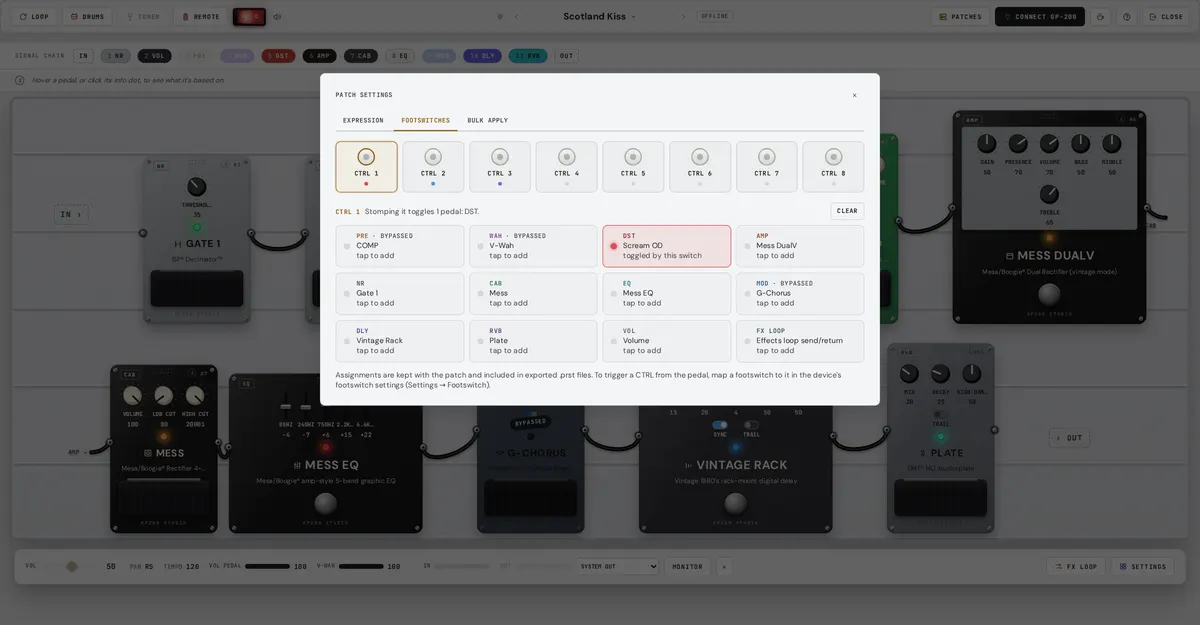

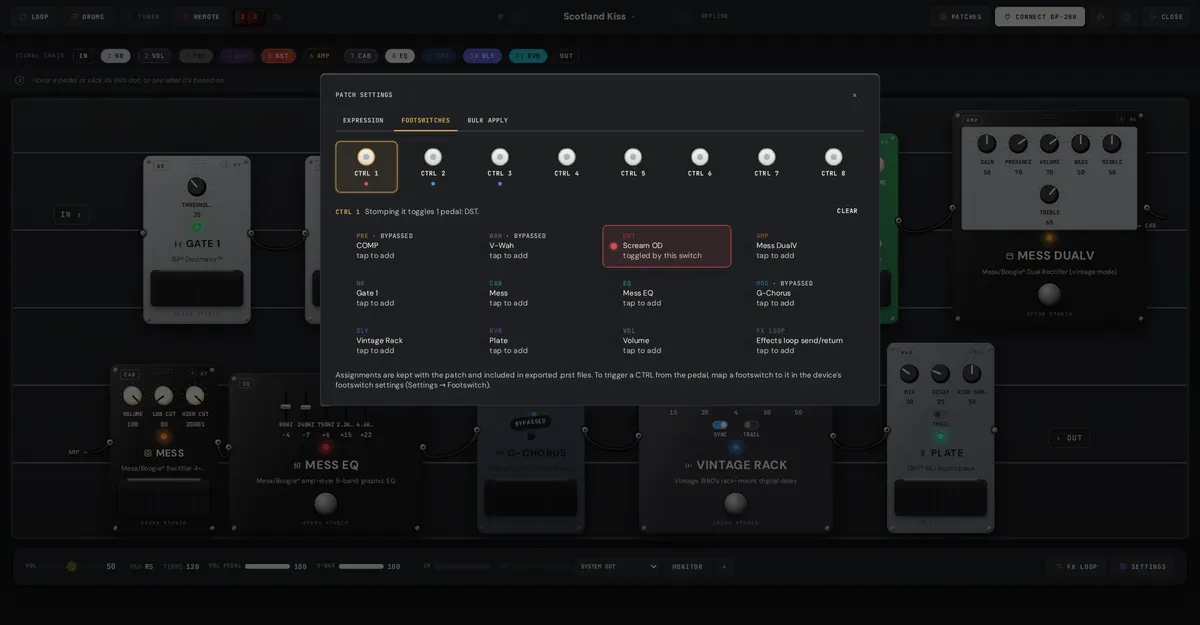

The CTRL footswitch assignment drawer — CTRL drawer: bind each footswitch to a set of effect blocks.
